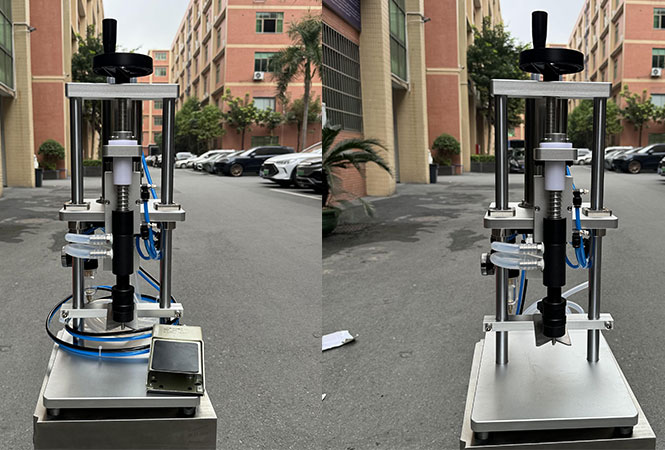

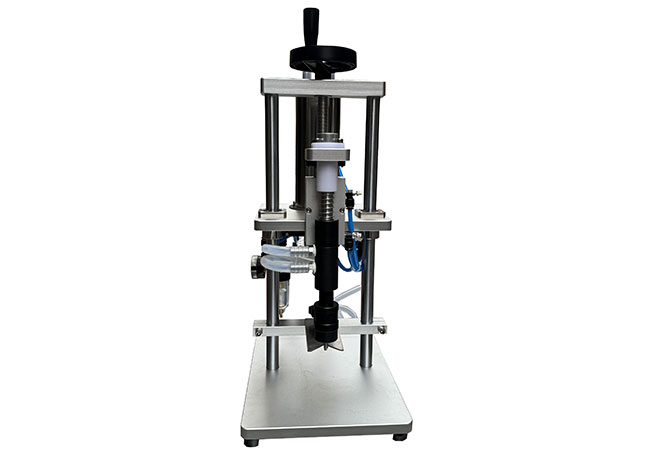

Single-head pneumatic perfume filling machine is widely used in the filling field of cosmetics, perfumes, essential oils and other liquid products. It is ideal for small batch production as well as high-end personalized production.
Item:
Parameter
Applicable Bottle Range:
Bottle height ≤250mm
Filling Range:
10-500ml (Customizable)
Bottle Diameter:
4.5-20mm
Working Speed:
20-40 times/min (Related to worker speed)
Air Source Requirement:
0.4-0.6MPa
Weight:
20KG
Size:
300*250*600mm
Get a Quote

Product Details

AXS-PF-a

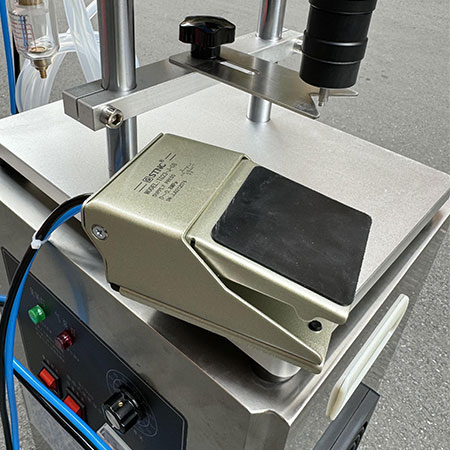

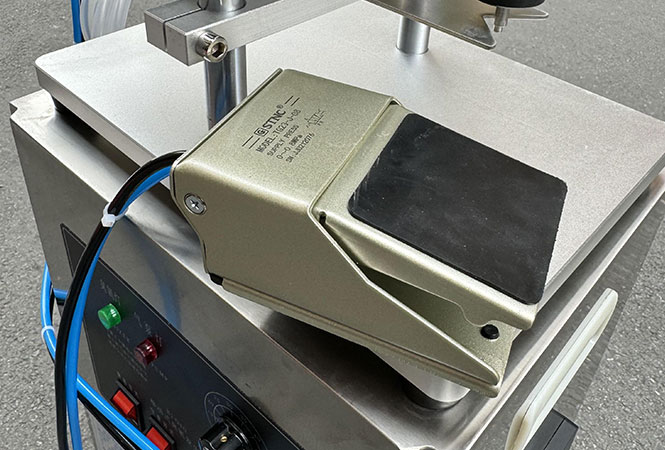

Foot mode, the use of foot working mode, foot can be filled once.

AXS-PF-b

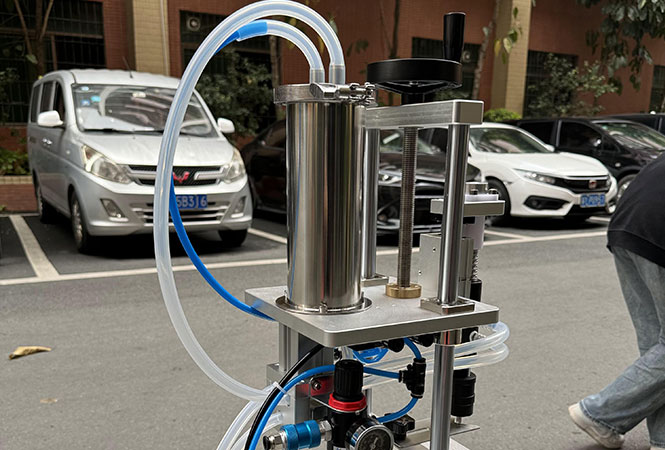

Large capacity storage cylinder, used to store excess material back, to ensure that the filling material does not lose, to prevent the material from contact with other parts.

AXS-PF-C

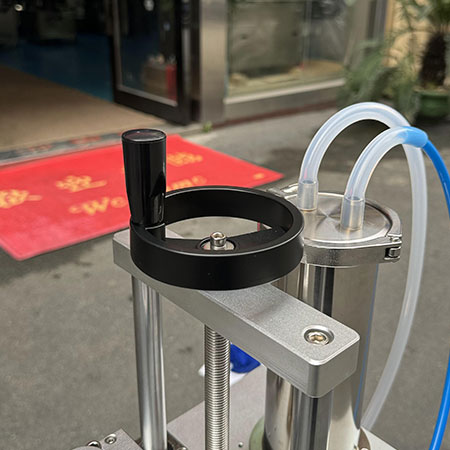

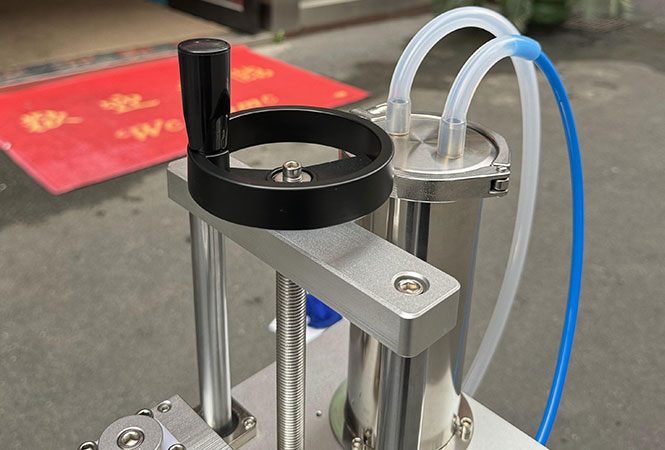

Manual adjustment, can adjust the height according to the bottle body, fixed height, to ensure that the work will not fall.

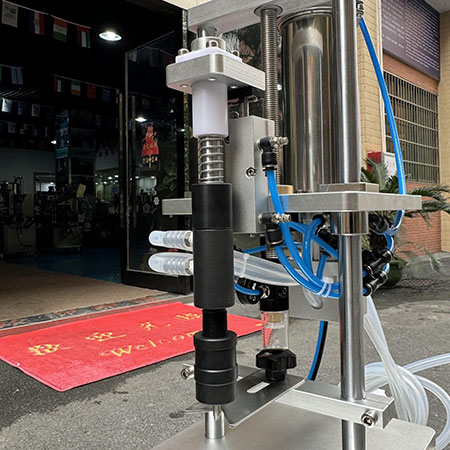

Filling device, using vacuum filling unique liquid level measurement design, can accurately carry out high-precision filling, can adjust the filling speed. When filling exceeds the level line, the machine will automatically suck back the excess material to achieve efficient and fast filling.

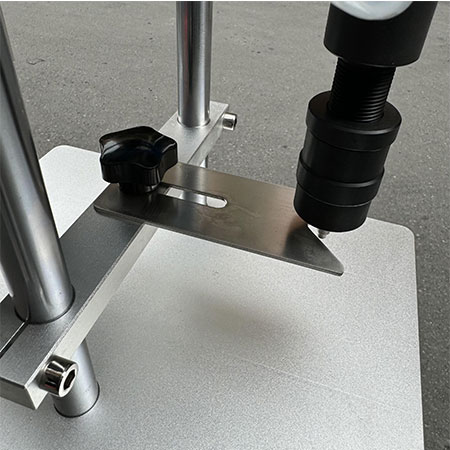

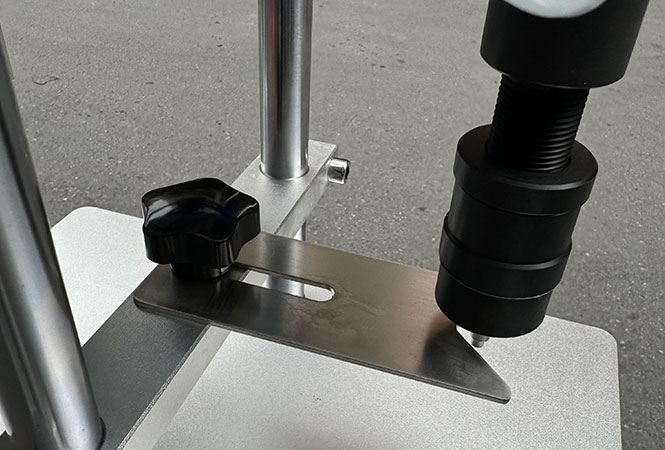

Card positioning safety device, can be fixed position filling, prevent bottle tipping, safe and convenient operation.

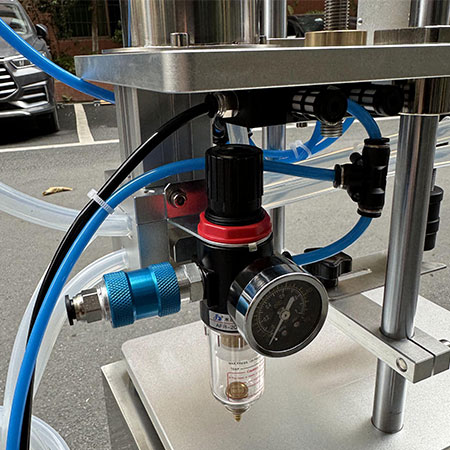

Barometer, can observe atmospheric pressure condition, fully filter impurity and moisture in the gas, and ensure that the use of pneumatic components.
